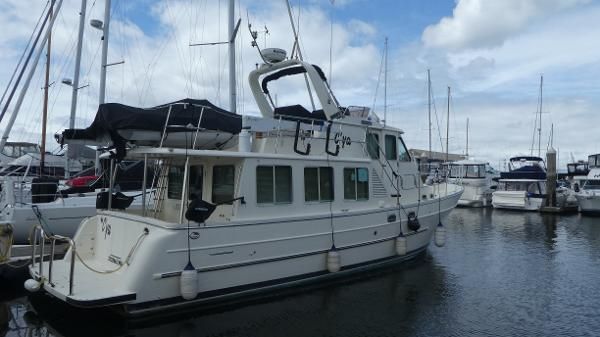

2009 North Pacific 43 Pilothouse

North Pacific Yachts are solid built boats that offer unbeatable value. In striving to provide the most to boaters for their dollar, the North Pacific 43 comes fully equipped with all brand name equipment including a generator, bow thruster, diesel forced air heat, 3000W inverter/charge, windlass and anchor package, fresh/sea water wash down, and more. The rugged low maintenance exterior of the North Pacific 43 is built with no teak to maintain and is only punctuated by heavy 316 stainless steel. It has a solid fiberglass hull using vinylester resin. The interior of the NP43 is beautifully hand crafted in teak and is very spacious making it an excellent yacht for extended cruising. Not only does the North Pacific 43 offer excellent value, but also good design. All equipment is easily accessible and the useful living and storage areas are maximized on this yacht, from the spacious salon to the extensive upper deck. The North Pacific 43 can be confidently piloted with an unobstructed view over the high prow from the raised pilothouse, or from the flybridge She cruises comfortably at 8.5 knots, produced by the yachts single 230 hp Cummins diesel engine.

At the stern of the yacht there is a fully undercover cockpit approximately 11 X 5.  Access to it is through the transom door from the large integrated swim platform, from the salon through the FRP door or down the ladder from the fly bridge. The cockpit provides a good area for storage, fishing or just sitting and enjoying a nice evening.

Master Stateroom: The forward master stateroom is very spacious with a ceiling over 7' high. It features a large island bed with a comfortable 5", fabric covered foam mattress and two individual reading lights along with two halogen ceiling lights. There is a large storage space under the mattress, four drawers, and two hanging loc

Forward Accommodation: Down the stairs at the forward most part of the salon is a hall and access to the forward accommodations, which are designed to provide maximum space and comfort for guests and owners alike. The hall floor is composed of three removable hatches that allow for access to the 50GAL fiberglass holding tank, bilge pump, macerator pump, shower sump pump, sea/fresh water wash down pump and all of the pipes and hoses running fore and aft.

The North Pacific 43 with its pilothouse and trawler style design gives the yacht a bold go-anywhere look. There is no wood anywhere on the outside of the yacht, only stainless steel and fiberglass. This adds to the rugged look, but also lessens considerably the workload in maintaining these yachts. The hull mold is based on a proven 38' CHB hull with a 4' transom extension. The transom extension was made with a very hard chine and this with the 1600 lbs of ballast in the keel make the NP43 a very seaworthy yacht while cruising or at anchor.

The hull is solid fiberglass at least 8.5mm (just over 1/3") on the upper sides and between 11.5mm (just over 3/7") to 18.5mm (just over /7") on the bottom and lower sides. There is no coring. A vinyl ester resin, as opposed to a cheaper polyester resin, is used on the outer layers of the hull. This resin helps to reduce the chance that blisters will form. Below the waterline is an epoxy barrier making blistering nearly impossible. Reinforcement is added with a molded FRP grid bonded throughout the hull bottom. Foam filled stringers, foam filled beams and extra support every 12 inches strengthen the heavy semi-displacement hull.

The superstructure is made of fiberglass with structural coring as required (Nida coring on the decks). The hull and superstructure are formed in two pieces and are joined with epoxy and bolted through, forming a strong bond that lasts. The factory uses a time consuming, hand-laid method of forming all the fiberglass that results in a strong, quality finished product that lasts.

From the beginning of the North Pacific 43 project it was emphasized how important it is to have a spacious salon, as so much time is spent there and we worked hard to achieve this. By making the walkway to the bow from the stern above the salon we were able to build the salon walls nearly to the edge of the hull, maximizing the useful living space, while not loosing the ability to get around the boat. The salon is very open with no hanging cabinets dividing the galley, and most importantly, the cook from the rest of the salon. Nine windows give lots of light and allow for a nice panoramic view. The salon is almost 11' long and 11'8" wide with a ceiling height of 6'5" making it equivalent to many 55' yachts.

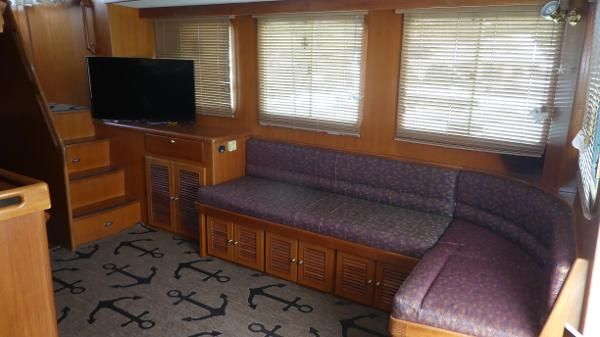

On the starboard side there is a comfortable 8' long and 36" wide, "L" shaped settee. In seconds this settee is easily converted into a comfortable bed with a width of 47". There is storage space underneath the entire length of the settee, as well as a cabinet at the forward end for extra storage that also makes an ideal place to install an entertainment system. The salon is well-lit with ample LED  lighting and reading lights in the corners. The light on the teak gives the salon a very warm, dry and comfortable feeling.

Well-lit Corian (or equivalent) countertops with a raised edges surround the galley, forward of the dinette. There is a large amount of counter space for food preparation. A single stainless steel sink, adequate to fit a large pot, with a single handle American Standard faucet and pullout spout makes clean up easy. A Princess electric stove is standard equipment on the North Pacific 43; however, a gas stove is also available. With 3 burners and an oven, the stove provides a good cooking surface, and there is still sufficient room for many other appliances in the galley. There are four drawers, one large cabinet with two adjustable shelves, another large cabinet under the sink with two fixed shelves and a small cabinet above the stove for storing spices.

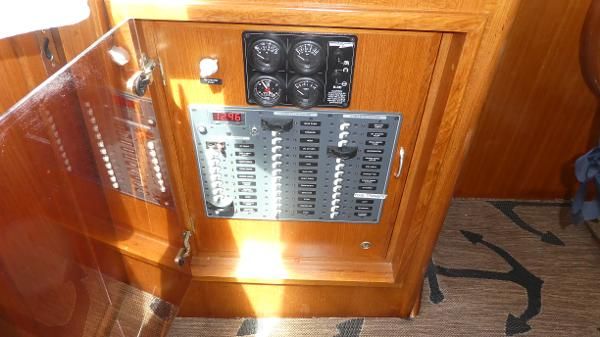

The pilothouse is critically important to comfortable travel in bad conditions and was designed so the North Pacific 43 could be piloted confidently with an unobstructed view. Halogen lights, light up a comfortable captain's seat in front of a teak steering wheel with hydraulic steering. A bench seat for observers, helps to make long range cruising an enjoyable experience for everyone. Sliding doors on both sides of the pilothouse make access to the bow and fly bridge easy, and at the same time can provide a nice breeze while underway. Morse dual cable engine controls, engine gauges, bow thruster control, windlass control, fuel gauges, water level gauge, horn and electronics of your choice will be set in the black background trimmed with teak; making an impressive control center for the yacht.

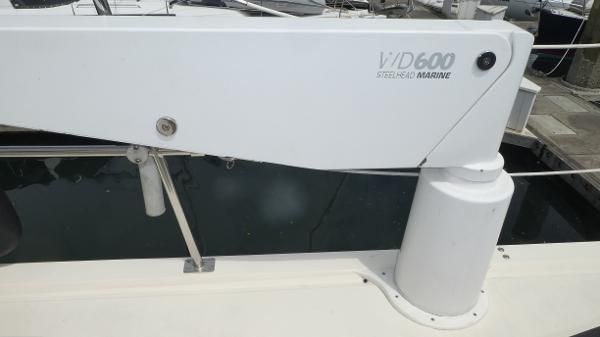

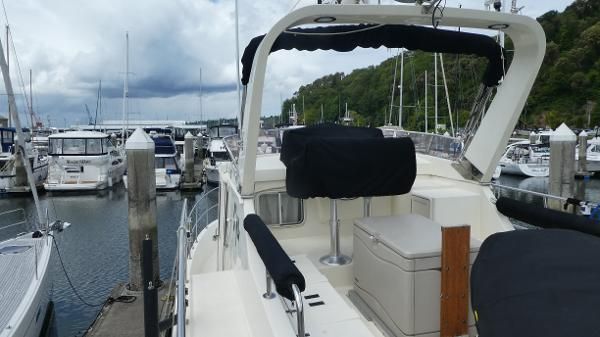

Access to the upper deck of the North Pacific 43 is via a ladder on the port side of the cockpit, or up the stairs on both sides of the pilothouse. The steps on the outside of the pilothouse to the upper deck mean that you can easily access the bow from the stern without walking through the cabin, unlike many pilothouse models. The upper deck is very spacious, providing a large area to relax with room to spare for a dinghy lifted by the yacht's pipe davit or optional low profile davit. There are two large storage lockers with cushions that double as seating and a comfortable reversable double helm seat near the front. Engine controls, gauges, bow thruster control, windlass control, are standard gauges on the fly bridge but you may choose to have the factory install navigational equipment purchased separately. A folding radar arch above the seating area provides a platform to mount all of the various antennas.
